Lab5: Person Tracking with YOLO and ROS2

Introduction

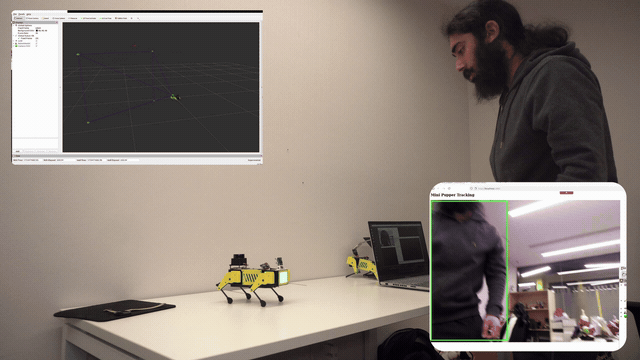

In this lab, you will set up and run the Mini Pupper tracking system that uses YOLO11n for real-time person detection and tracking. The robot will follow detected people by adjusting its head orientation using PID control with IMU feedback.

Features

YOLO11n object detection on live camera feed
Real-time tracking with unique temporary IDs per person
IMU-based PID control for yaw correction and smooth pitch tracking
Flask web interface for monitoring camera and tracking overlays
RViz visualization for 3D spatial awareness of detections

Prerequisites

Mini Pupper with ROS2 Humble installed
Camera enabled (see Lab2)
Completed Lab3 (Bringup and Motion Control)
Completed Lab4 (WSL ROS2 Setup)
Stanford Controller (CHAMP Controller is not supported)

Hardware Requirements

Raspberry Pi Camera Module (v2 recommended)
Camera must be enabled in mini_pupper_2.yaml (camera: true)

Part 1: Install Dependencies

Python Dependencies

# Downgrade numpy to a compatible version
pip install "numpy<2.0"

# Install required packages
pip install flask onnxruntime motpy

ROS2 Dependencies

sudo apt install ros-humble-imu-filter-madgwick ros-humble-tf-transformations

Part 2: Download YOLO Model

The tracking system uses YOLO11n for person detection. Download the pre-trained model:

# Download the PyTorch model
wget https://github.com/ultralytics/assets/releases/download/v8.3.0/yolo11n.pt

Export to ONNX Format (Optional)

If you need to export the model yourself:

# Set up virtual environment
python3 -m venv yolo-env
source yolo-env/bin/activate

# Install Ultralytics
pip install ultralytics

# Export to ONNX with 320x320 input size
yolo export model=yolo11n.pt format=onnx imgsz=320

Move Model to Package Directory

mkdir -p ~/ros2_ws/src/mini_pupper_ros/mini_pupper_tracking/models/
mv yolo11n.onnx ~/ros2_ws/src/mini_pupper_ros/mini_pupper_tracking/models/

Part 3: Build the Package

cd ~/ros2_ws
colcon build --packages-select mini_pupper_tracking
source install/setup.bash

Part 4: Running the Tracking System

Step 1: Launch Bringup on Mini Pupper

SSH into your Mini Pupper and run:

source ~/ros2_ws/install/setup.bash
# Use setup.zsh if you use zsh instead of bash

ros2 launch mini_pupper_bringup bringup_with_stanford_controller.launch.py

This launches the Stanford Controller which is required for the tracking system.

Step 2: Launch Tracking (on Host PC or Mini Pupper)

In a new terminal:

source ~/ros2_ws/install/setup.bash
ros2 launch mini_pupper_tracking tracking.launch.py

The web interface will automatically open at http://localhost:5000.

Step 3: Launch RViz Visualization (Optional)

In another terminal:

source ~/ros2_ws/install/setup.bash
ros2 launch mini_pupper_description stanford_visualisation.launch.py

Part 5: Web Interface

The Flask web interface shows:

Live camera feed
Detected individuals with bounding boxes
Assigned temporary UUIDs for tracking

Access it at: http://<robot-ip>:5000

Part 6: Configuration

Configuration files are located in config/ directory:

Movement Parameters (`movement_params.yaml`)

yaw:
  tracking_enabled: true    # Enable horizontal tracking
  Kp: 5.0                   # PID proportional gain

pitch:
  tracking_enabled: false   # Enable vertical tracking

Tracking Parameters (`tracking_params.yaml`)

yolo:
  confidence_threshold: 0.7  # Detection confidence
  image_size: 320            # YOLO input resolution

flask:
  auto_open_browser: true    # Auto-open browser on launch
  frame_rate: 15             # Streaming frame rate (FPS)

Part 7: System Architecture

Package Components

Component	File	Description
Detection & Tracking	`main.py`, `tracking_node.py`	YOLO11n detection with motpy tracking
Movement Control	`movement_node.py`	PID-based yaw/pitch control
Visualization	`camera_visualisation_node.py`	RViz markers for FOV and positions
Web Interface	`flask_server.py`	Real-time video streaming

ROS2 Topics

Published:

/tracking_array - Person detection results with tracking IDs
/robot_command - Stanford Controller command messages
/camera_fov - RViz visualization markers

Subscribed:

/image_raw - Camera feed input
/imu/data_filtered_madgwick - Filtered IMU orientation data

Architecture Diagram

┌─────────────────────────────────────────────────────────────────┐
│                        Mini Pupper                              │
│                                                                 │
│  ┌──────────────┐    ┌──────────────┐    ┌──────────────────┐  │
│  │   Camera     │───►│  /image_raw  │───►│  YOLO Detection  │  │
│  └──────────────┘    └──────────────┘    └────────┬─────────┘  │
│                                                    │            │
│  ┌──────────────┐    ┌──────────────┐    ┌────────▼─────────┐  │
│  │     IMU      │───►│  /imu/data   │───►│  Movement Node   │  │
│  └──────────────┘    └──────────────┘    │  (PID Control)   │  │
│                                          └────────┬─────────┘  │
│                                                    │            │
│                                          ┌────────▼─────────┐  │
│                                          │ /robot_command   │  │
│                                          │ Stanford Ctrl    │  │
│                                          └──────────────────┘  │
└─────────────────────────────────────────────────────────────────┘

Part 8: Testing

Run unit tests:

python3 -m pytest ~/ros2_ws/src/mini_pupper_ros/mini_pupper_tracking/test/ -v

Exercises

Exercise 1: Adjust Tracking Sensitivity

Modify the PID gains in movement_params.yaml to make the robot track faster or smoother:

Increase Kp for faster response
Decrease Kp for smoother movement

Exercise 2: Enable Pitch Tracking

Enable vertical tracking to make the robot look up/down:

pitch:
  tracking_enabled: true

Exercise 3: Change Detection Confidence

Adjust the confidence threshold to detect more or fewer people:

yolo:
  confidence_threshold: 0.5  # Lower = more detections

Exercise 4: Track Different Objects

Modify the tracking node to detect and track different COCO classes (e.g., cats, dogs, balls).

Safety Notes

Always test in a safe, open environment
Keep emergency stop (Ctrl+C) readily available
Start with tracking disabled and gradually enable features
Monitor robot behavior through web interface
Ensure adequate lighting for camera detection

Troubleshooting

Issue	Solution
No detections	Check camera is working, ensure good lighting
Robot not moving	Verify Stanford Controller is running
Model not found	Check ONNX file is in models/ directory
Web interface not loading	Check Flask is installed, verify port 5000
Jerky movements	Reduce Kp gain in movement_params.yaml

Debugging Commands

# Check if tracking topics are active
ros2 topic list | grep tracking

# Monitor detection results
ros2 topic echo /tracking_array

# Check IMU data
ros2 topic echo /imu/data_filtered_madgwick

Summary

In this lab, you learned:

How to set up YOLO11n for person detection
How to run the Mini Pupper tracking system
How to use the Stanford Controller for tracking
How to configure tracking parameters
How to visualize tracking in RViz and web interface
